CS 8200 3D FAMILY
See More. Do More. Right in Your Practice.

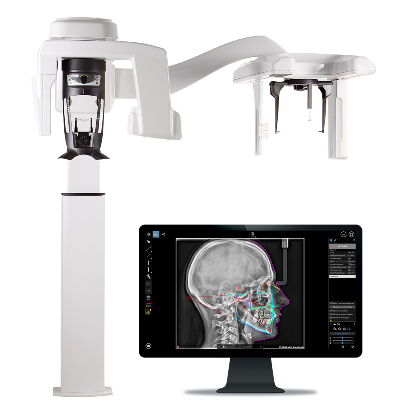

Extended Capabilities in a Small PackageThe CS 8200 3D is a versatile and compact CBCT system featuring an extended field of view—ideal for practices that want to cover a broader range of indications or expand their treatment capabilities.
Powered by Carestream Dental’s premium imaging technologies and software, this proven 4-in-1 solution delivers superb image quality in all modalities and enables you to offer more in-office services.
MULTI-FUNCTIONAL SYSTEM
In addition to diagnostic imaging, the CS 8200 3D allows you to obtain precise digital 3D models that integrate seamlessly with optional 3D applications, including those for implant planning and orthodontics.
NEWEXTENDED FIELD OF VIEW The CS 8200 3D features two additional fields of view

• 12 cm x 5 cm
• 12 cm x 10 cm.

 perfectly suited for scanning the full arch in a single scan and ideal for any cases involving the entire dentition or third molar.

Tube voltage: 60 -90 kV
Tube current: 2 -15 mA
Frequency: 140 kHz
Tube focal spot: 0.7 mm with X-ray tube OPX110 / 0.6 mm with X-ray tube D-067
Total filtration> 2.5 mm eq.Al
 Input voltage(AC)100 -240 V 50/60
 Minimum required space Without cepharm: 1200 (L) x 1400 (D) x 2400 (H) mm
With cepharm: 2000 (L) x 1400 (D) x 2400 (H) mm
Weight Without cepharm: 92 kg (202 lb.) With cepharm: 127 kg (280lb.)Panoramic Modality Cephalometric Modality3DModalitySensor technology CMOS
Image field6.4 x 140 mm (Adult) 6.4 x 120 mm (Pediatric) 6.4 x 263.3 mm Field of View (cm): 4 x 4 / 5 x 5 8 x 5 / 8 x 8  / 8 x 9 / 12 x 5 / 12 x 10
Gray scale: 16384 -14 bits
Magnification: 1.4
Radiological exam options Full panoramic, segmented panoramic, maxillary sinus, LA TMJ x 2, LA TMJ x 4Lateral, frontal AP or PA, oblique, submento-vertex, carpus(optional)Full, upper or lower jaw -Full, upper or lower molar –Occlusion -TeethExposure mode4 patient sizes (Child.Adult:small, medium, large)3 dental arch morphology (normal, square, sharp)4 patient sizes (Child.Adult:small, medium, large)High Definition  (75 μm), Standard, Fast and low dose Exposure time: 3 to 20 sec
