• 360°scan and 800 frame images with unique CT algorithms
• QuartZ 4 scan platform, supporting flexible scan mode
• Multiple focus layers in panoramic imaging, fitting the patient's dental arch
• Easy-to-target scan area
• Six positioning lasers with face-to-face communication to posit precisely
• X-type base is convenient for wheelchair-bound patients
• 10＂LED touch screen
• Storage box design
• Voice reminder

AI+Low dose

Boosted by the deep learning-based CT reconstruction algorithm, the Smart3D-X can obtain more defined tomography while further reducing the radiation dose, continuing to raise the industry standard for low-dose control.

AI+Nerve

The system can label the neural tube automatically in the CT image, providing great convenience for diagnosis.

Metal Artifact Reduction

With the new T-MAR reduction module for metal artifact removal, the system corrects metal artifacts intelligently. It avoids over modification and saves the original clinical data.

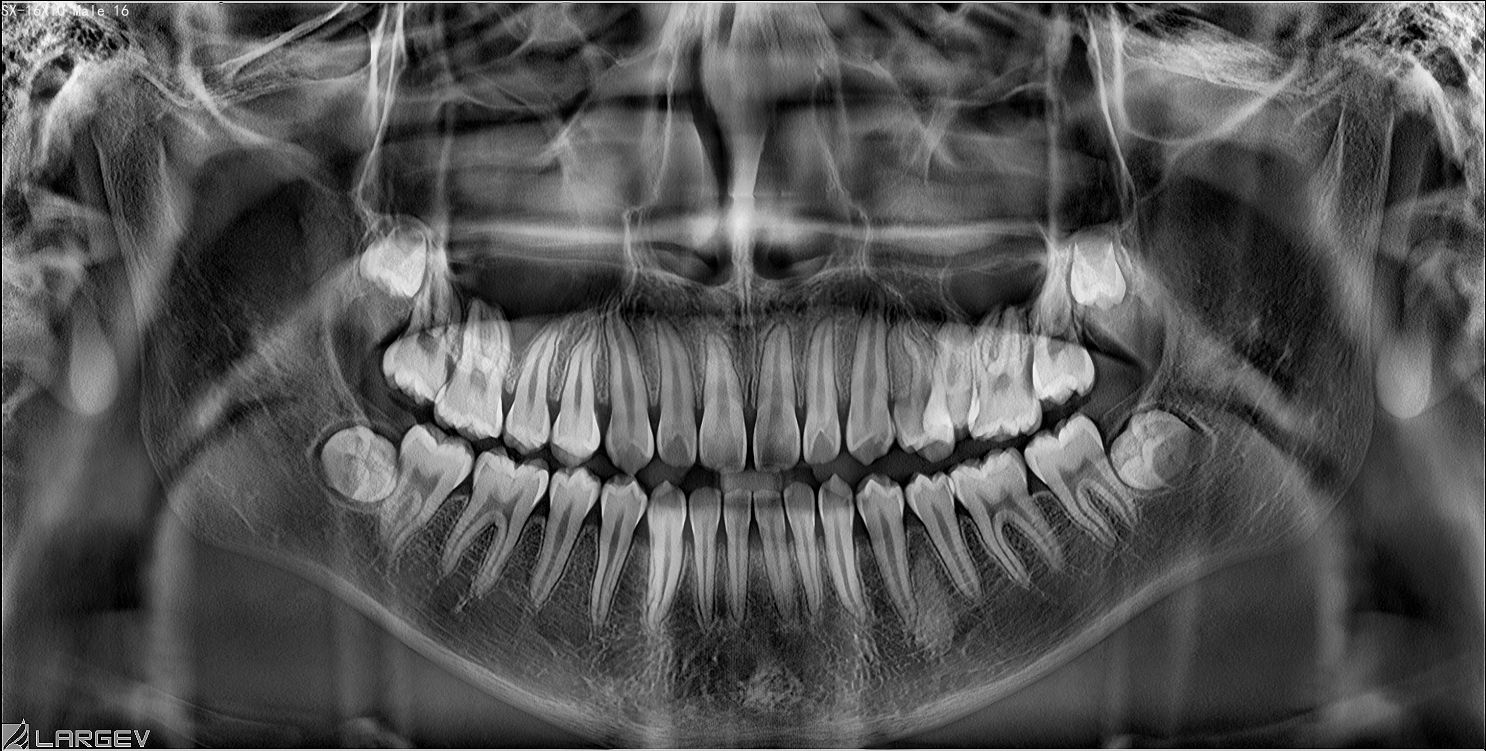

AI+PAN

CT reconstruct panoramically with the new deep learning-based CT reconstruction algorithm, the system can obtain a precise CBCT image. Panoramic images together with the new intelligent auto-focus and multilayer panoramic technology, the system automatically fits the best panoramic curves and reconstructs a better image.

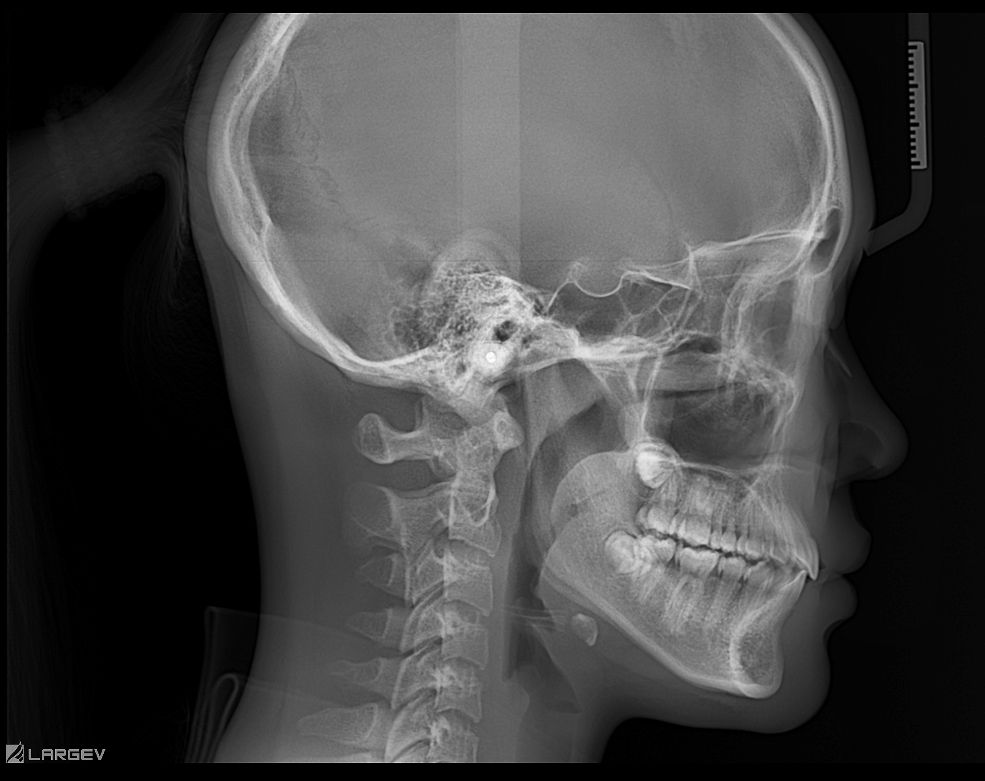

AI+CEPH Measurement (Optional)

The neural network is trained by mega data, which automatically identifies orthodontic anatomical landmark points, draws anatomical structures and outputs measurement reports according to the selected measurement methods.

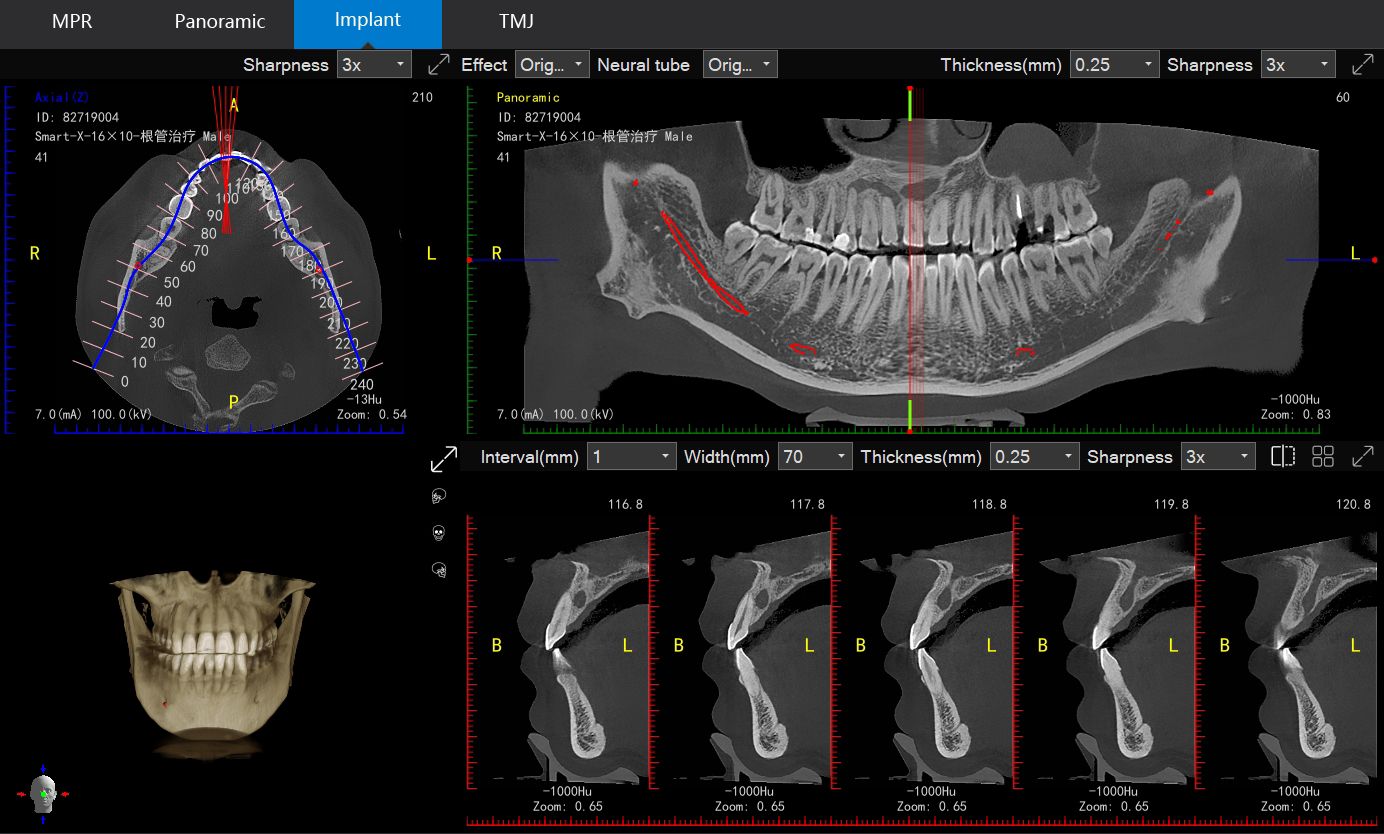

Multiple Planar Reconstruction

Axial, coronal and sagittal slices can be observed simultaneously. Besides, the slice in any direction is available. Buccolingual slices, distal and mesial sections were obtained to facilitate diagnosis.

3D Fine Reconstruction

Local fine reconstruction is conducted in the designated area.
